Hi Hats

TECHNICAL CHARACTERISTICS

Electrical

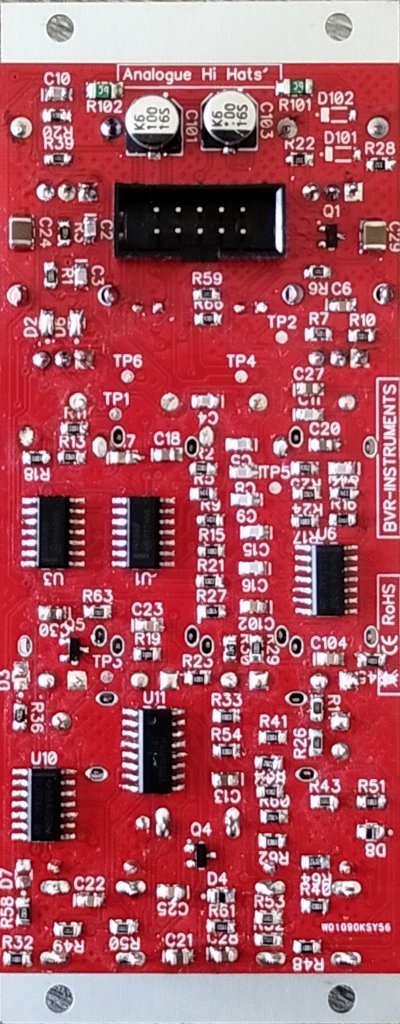

100% analog Eurorack module with discrete design for noise and metallic sources. OTA-based amplifiers are used for the two VCAs.
The module provides two separate voices with independent Decay and Level controls.

Controls

• 2 center-detent potentiometers for Tone and Contour, allowing resonance control of the band-pass filter


• 2 potentiometers for adjusting Metallic and Noise levels

• 5 sliders for:

  • Decay and Level of the Open Hat


  • Decay and Level of the Closed Hat


  • Mix Ext. for blending external input


Inputs

• Trigger inputs for Open and Closed Hat


• External In for injecting an audio signal to blend with the internal metallic and noise sources


Outputs

• Independent outputs for Open Hat and Closed Hat


Size

• 10 HP

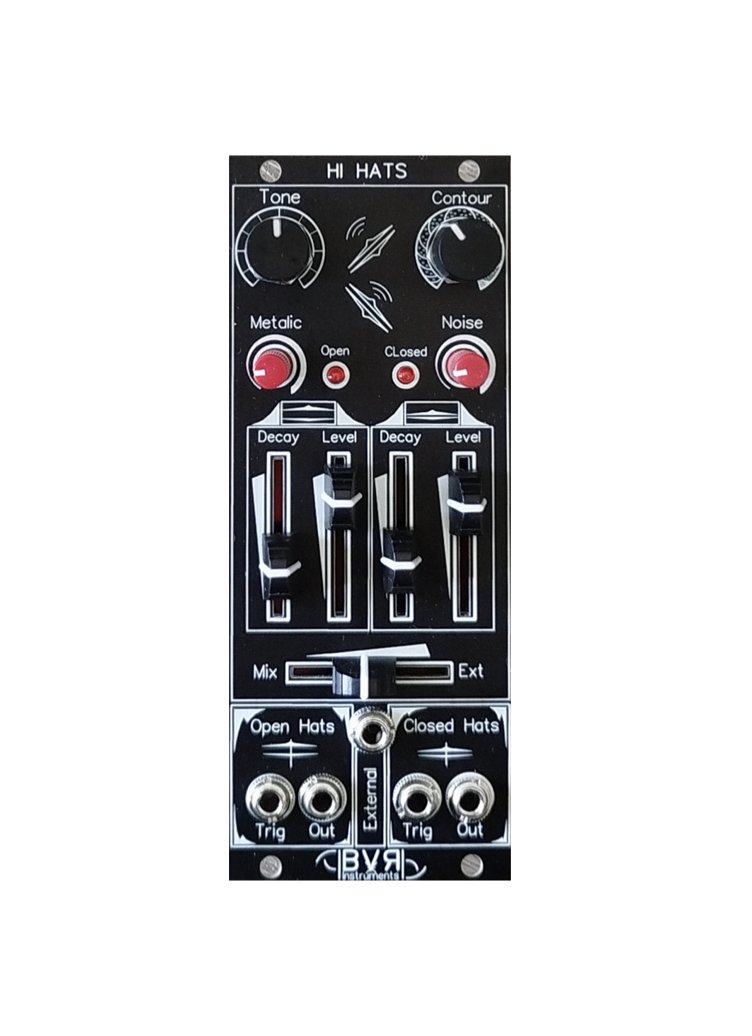

Front Panel

• Aluminum, black finish


Power Consumption

• +12V: 14 mA

• –12V: 14 mA

• +5V: 0 mA


Depth

• 22 mm
